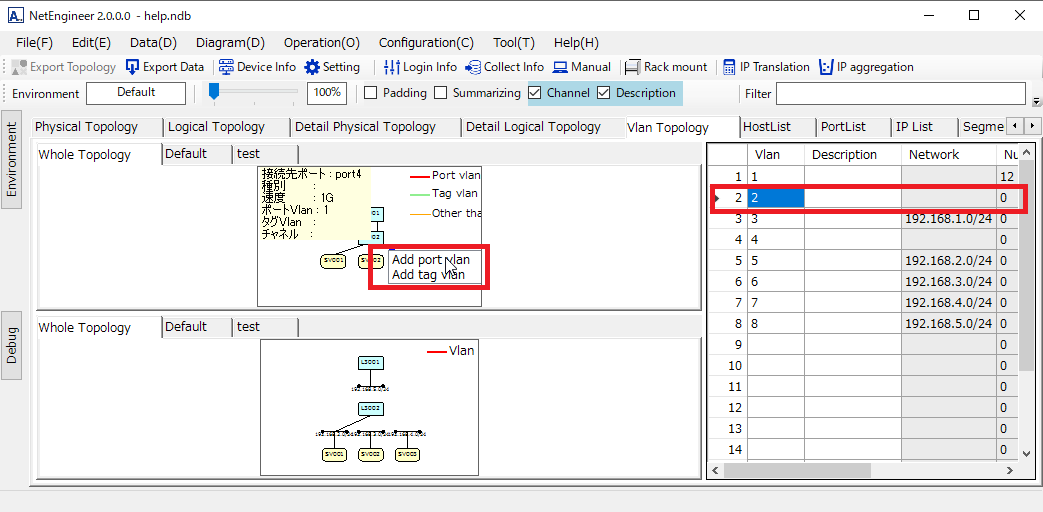

Select the Vlan you want to add from the Vlan list, click the configuration diagram, and select "Add port Vlan" from the choices.

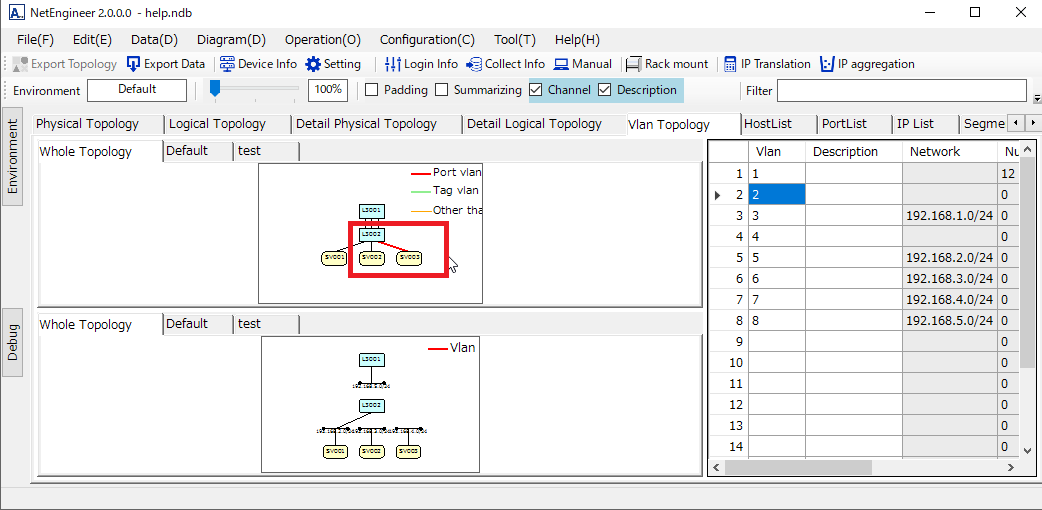

The line to which the port Vlan is added is indicated by a red line.
The line to which the port Vlan is added is indicated by a red line.
