Import data

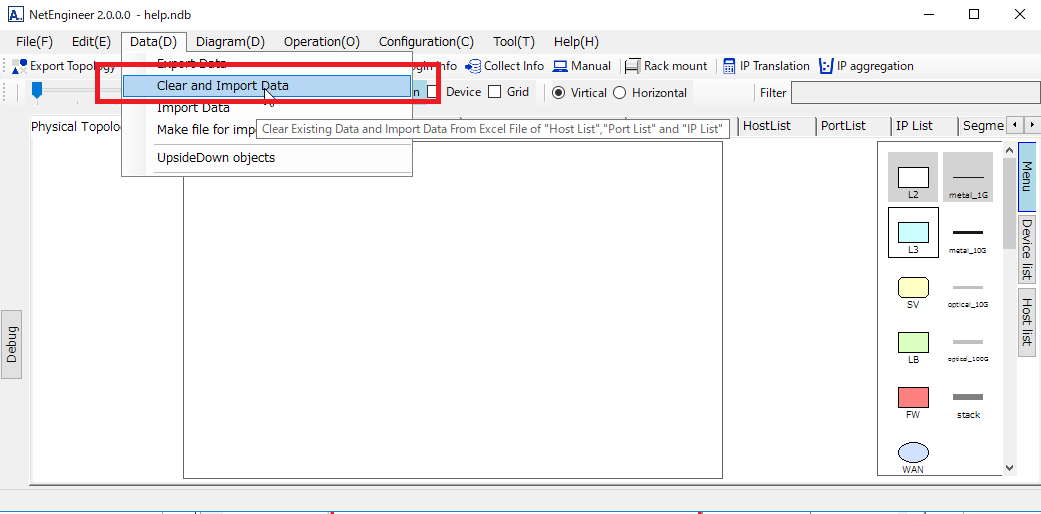

Please click 「Data」→「Clear and import data」.
Attention! Please note that the current data will be overwritten when importing.

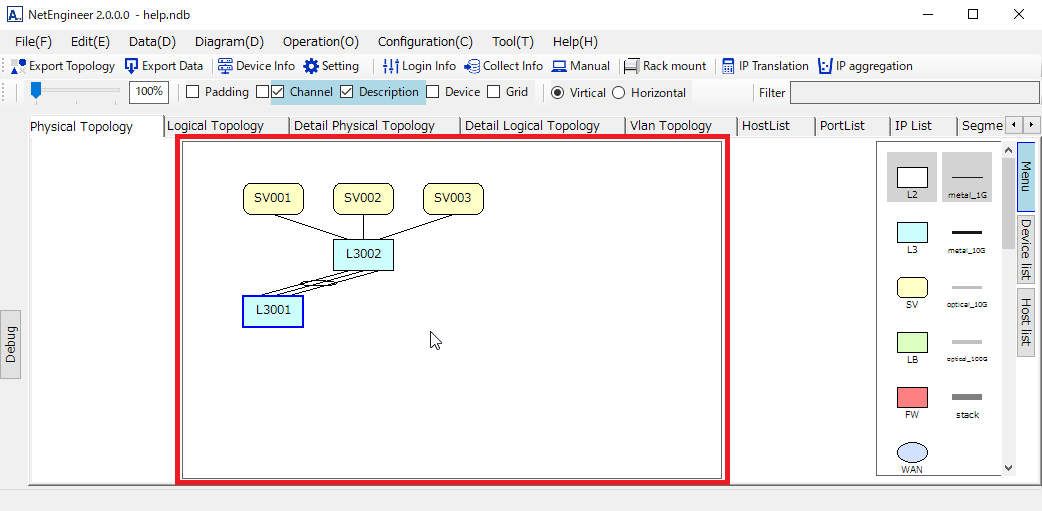

Since data will be imported, please correct the physical topology diagram, logical topology diagram, etc.
