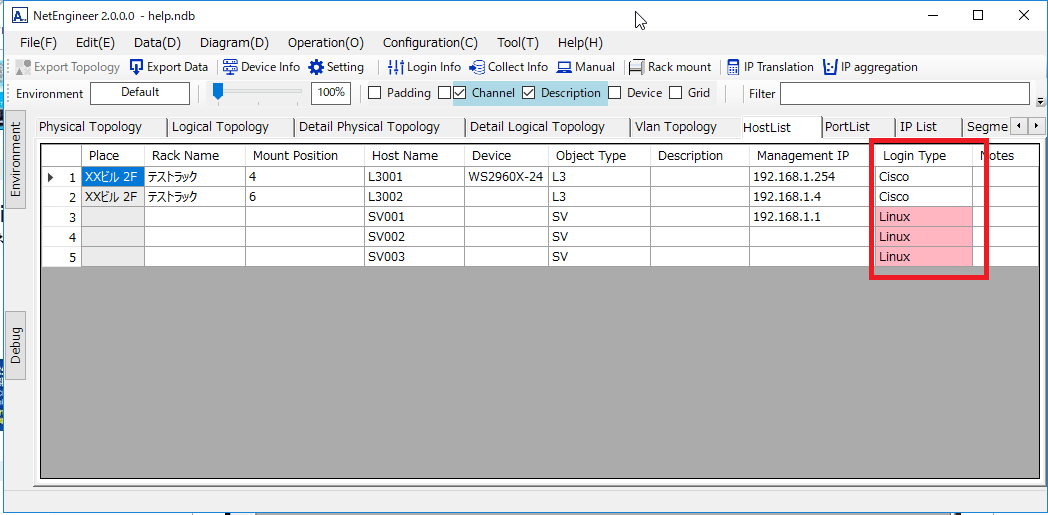

Please enter "Login type" of "Host list".
"Login type" for which login information does not exist is displayed with a pink fill.

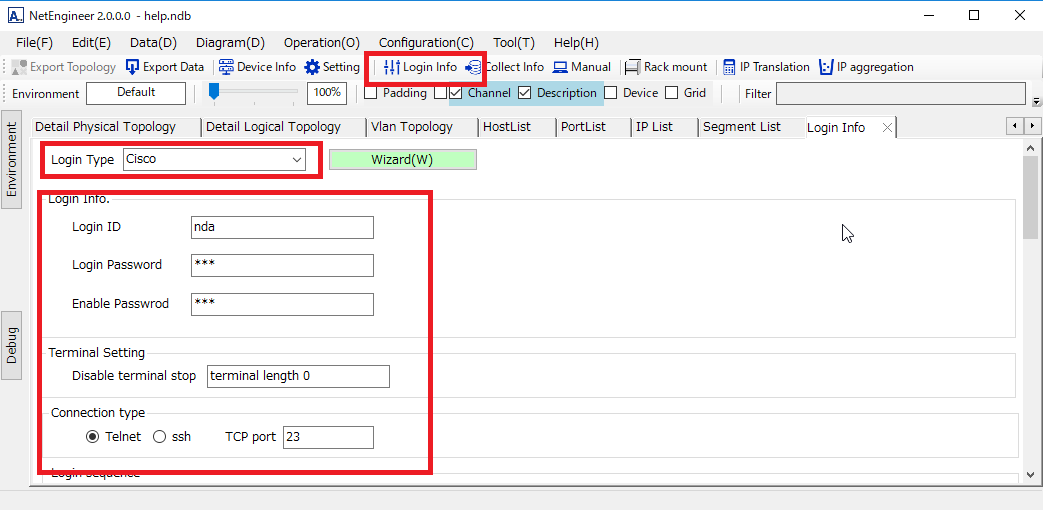

Please double-click in "Login type" Column or click "Login information".

Login type ...Please select login type. You can set login information for each login type.
Login ID ...Please set the ID for logging into the device.
Login password...Please set a password to login to the device.
enable password...Please set the second password.

Terminal stop disabled...Enter the command to disable terminal stop.

Connection type...Enter telnet or ssh and the port number to use.

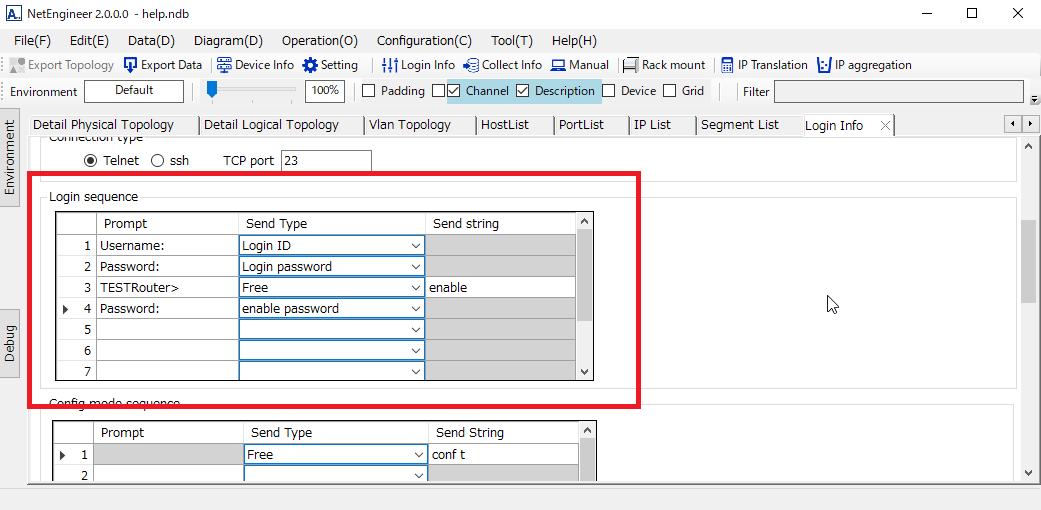

Please enter "Login sequence".（If it doesn't exist, please leave blank.)

Prompt ・・・Wait message　Ex：Password:
Send type ・・・Choose from "Login ID" "Login Password" "enable Password" "Free".
Send string・・・When "free" is selected for "Send type", set the string to be sent. Example: enable

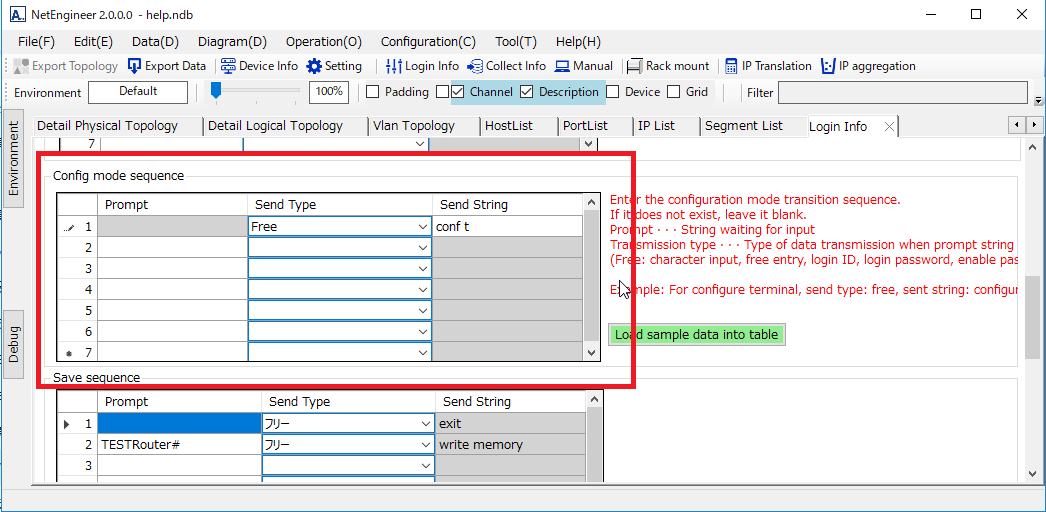

Please enter"Configration mode sequence"（If it doesn't exist, please leave blank.)

Prompt・・・Wait message(Please leave blank at first line.）
Send type ・・・Choose from "Login ID" "Login Password" "enable Password" "Free".
Send string・・・When "free" is selected for "Send type", set the string to be sent. Example: configure terminal

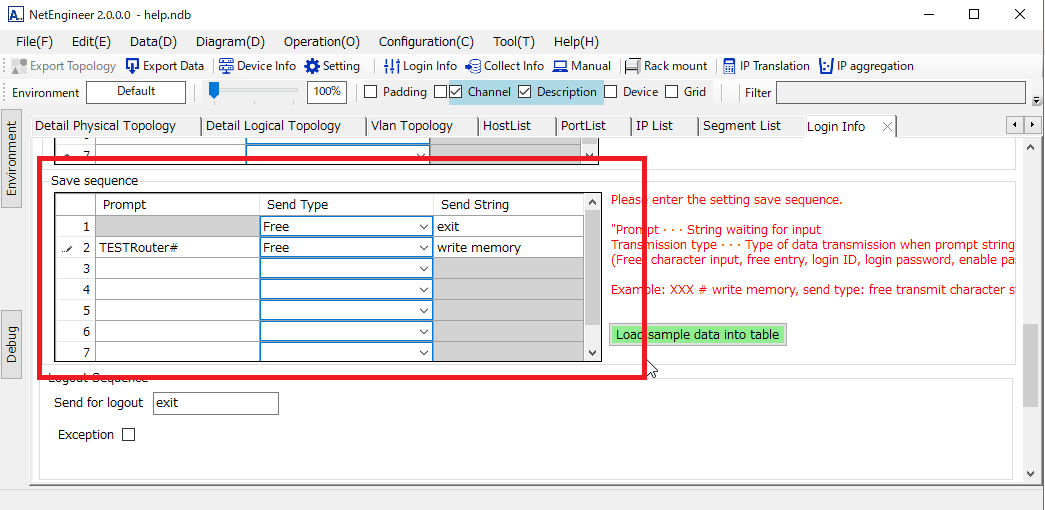

Please enter "Save sequence".（If it doesn't exist, please leave blank.)

Prompt・・・Wait message(Please leave blank at first line.）
Send type ・・・Choose from "Login ID" "Login Password" "enable Password" "Free".
Send string・・・When "free" is selected for "Send type", set the string to be sent. Example:write memory

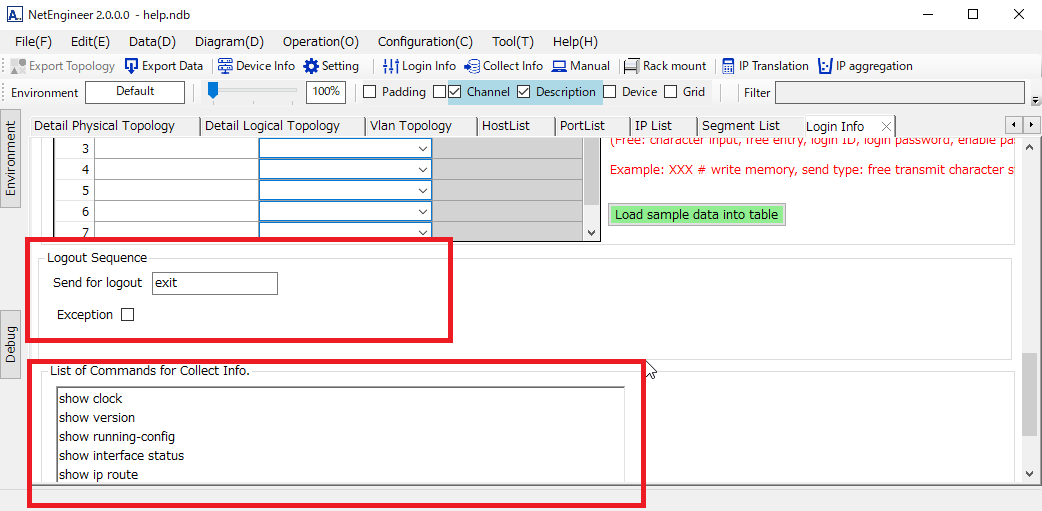

Please set "logout sequence" and "Collecting information" command.

Send Logout・・・Please enter the string to be sent for logout. It will be sent repeatedly until logout is completed. Example: exit
Commands for collecting information・・・Please enter the command list used in Collecting information and Operation manual.
