Export topology

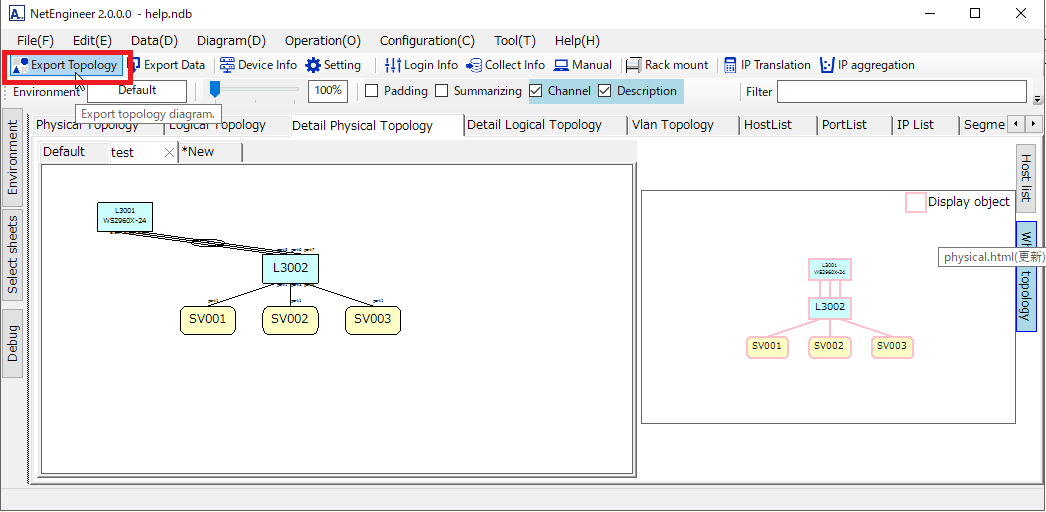

You can export the detailed physical topology diagram with clicking 「Export topology」button.

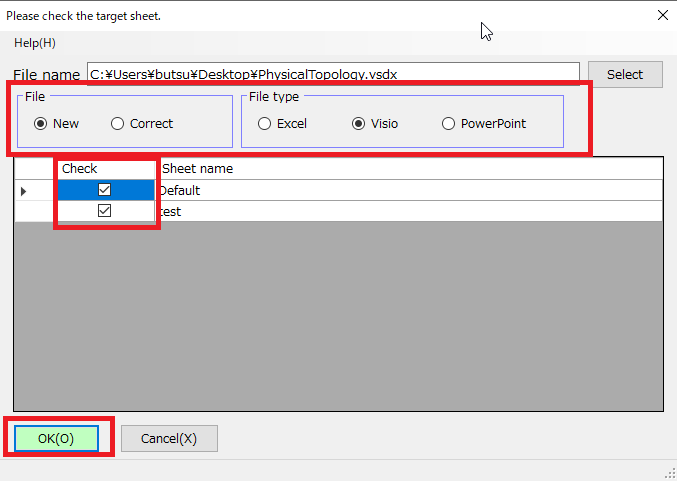

Please select the output sheet, file type and etc. and click "OK" button.
