You can add segment objects in the detailed logical topology diagram.

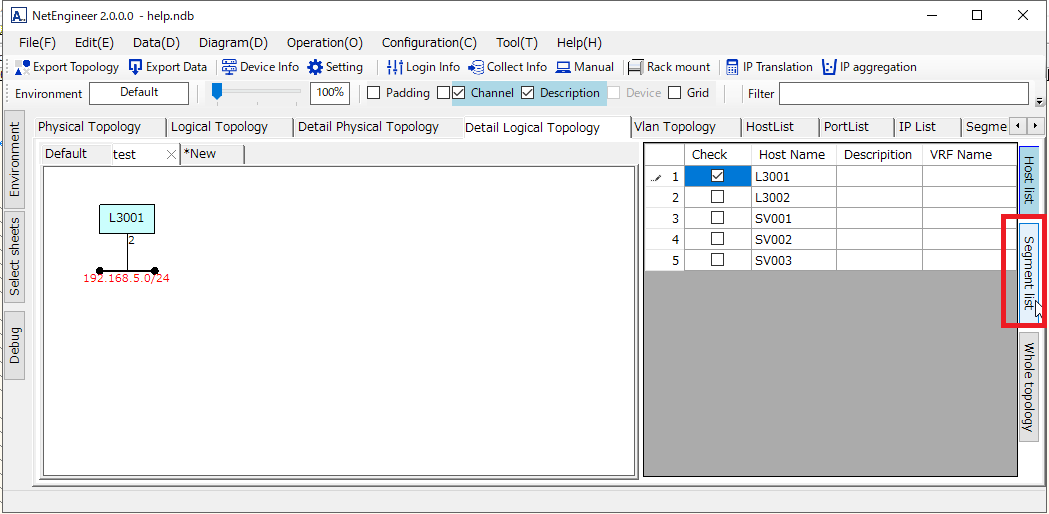

Please click "Segment list" button on the right.

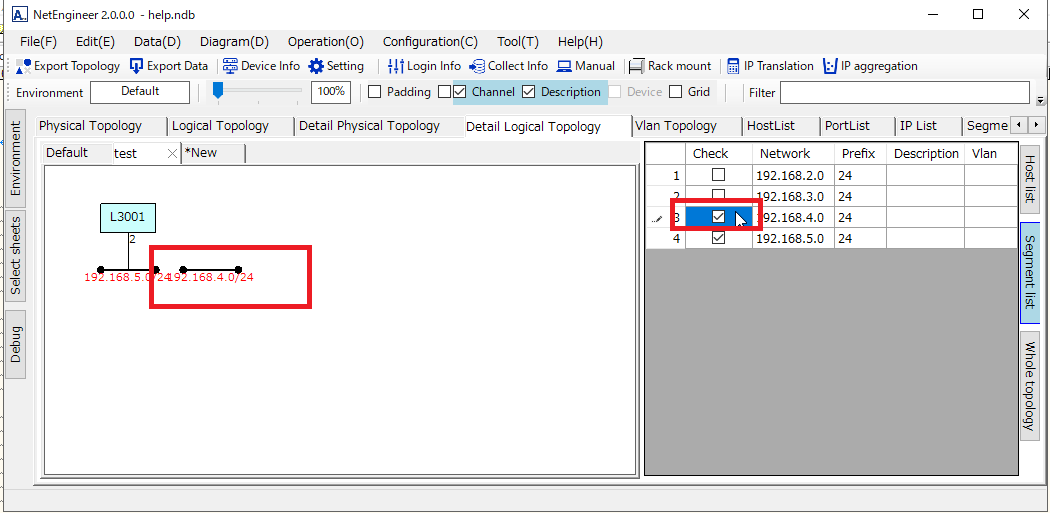

Please check the target segment from the segment list on the right.
