Change the device size(the number of units) setting | Network design automation

Change the device size(the number of units) setting

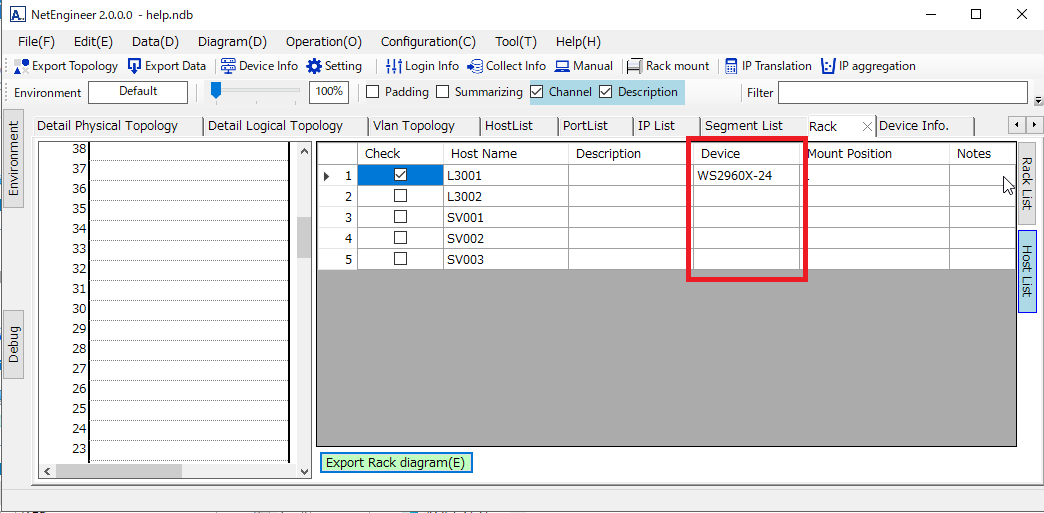

Please enter the device in the host list.

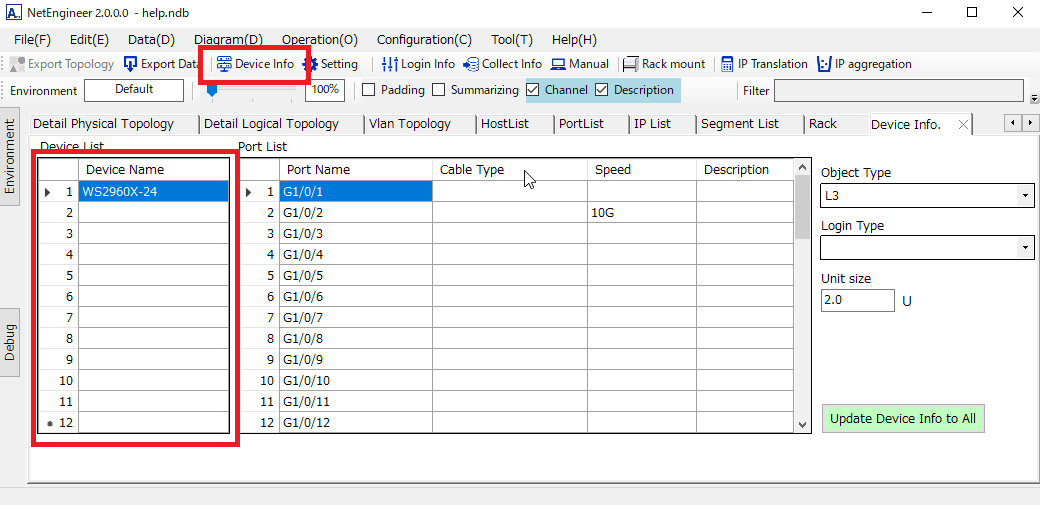

Please click "Device Info" button and open the device edit screen.

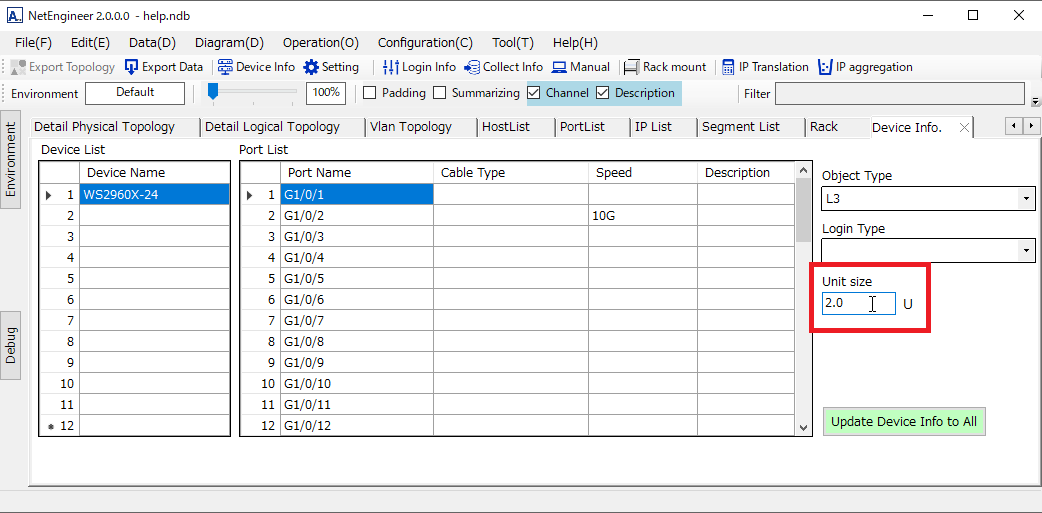

Please edit the unit size of target device. You can set the number 1-42 in 0.5 increments.
