Topology diagram

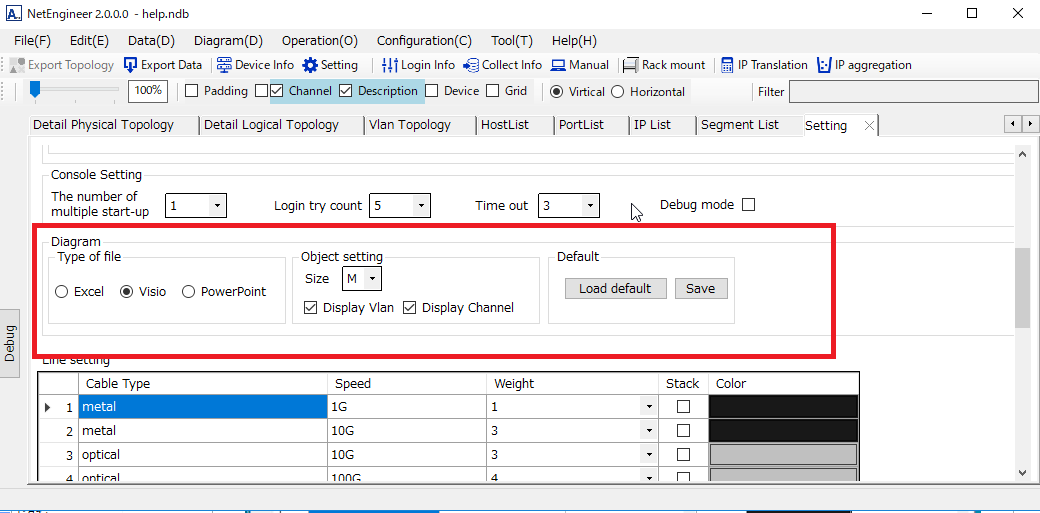

Configure the settings when outputting the topology diagram.

「File type」 ・・・You can select Excel、Visio、PowerPpoint as file type. It must be installed.
「Object」 ・・・You can set whether to display the object size, Vlan and channel.
「Load default」・・・Load default values into line settings and object settings.
