You can add and view routings in the topology diagram.

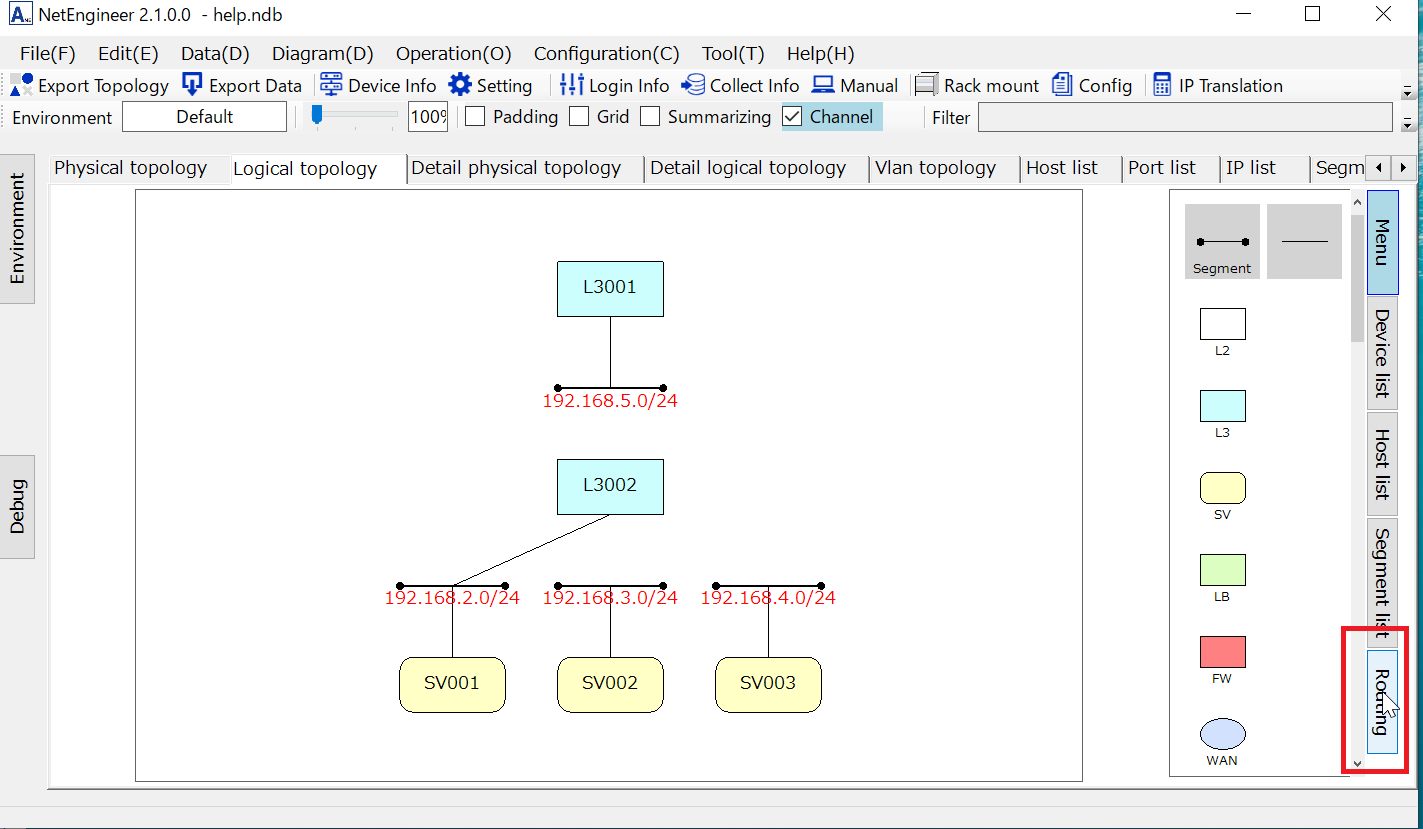

Click Routing on the Logical topology diagram tab.

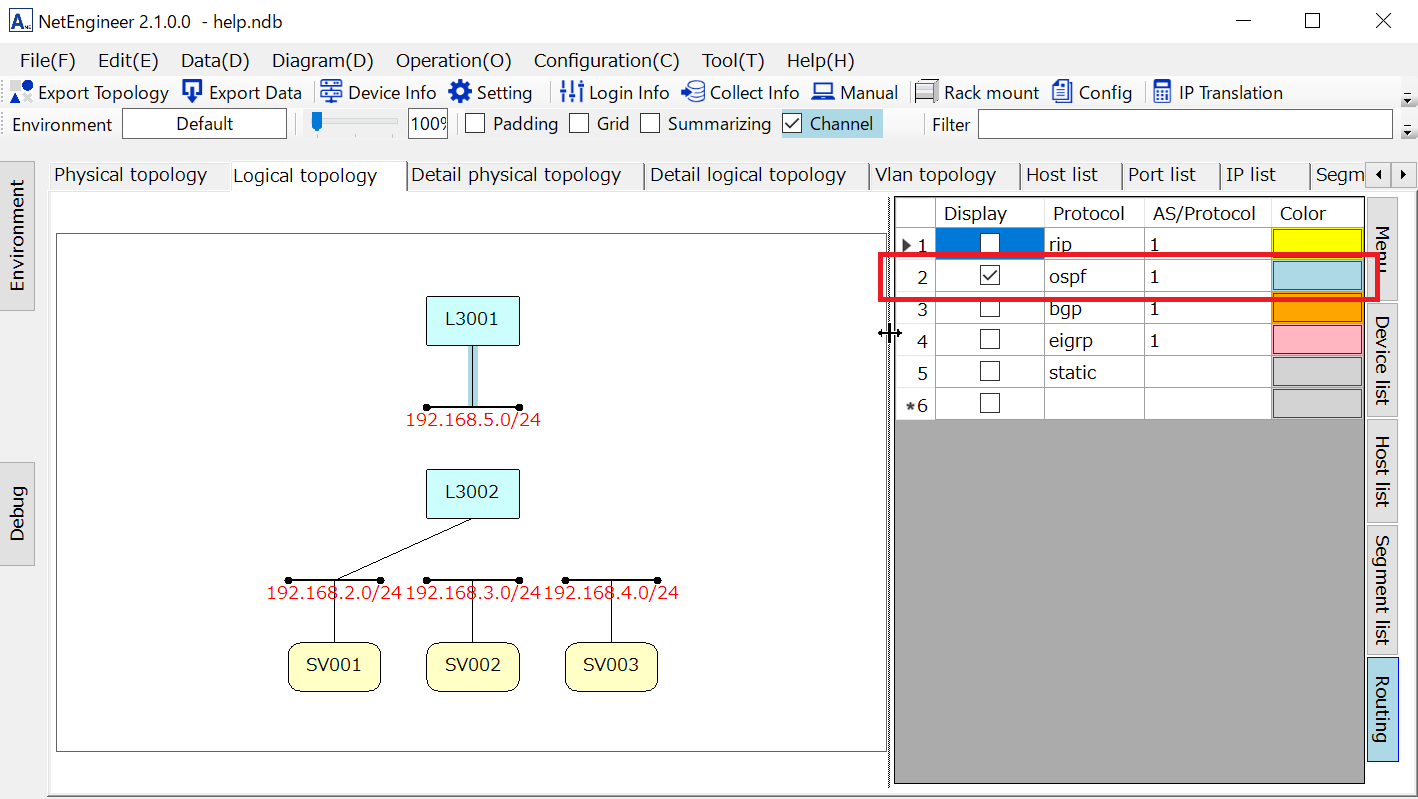

Select the routing protocol you want to add and check "Display".

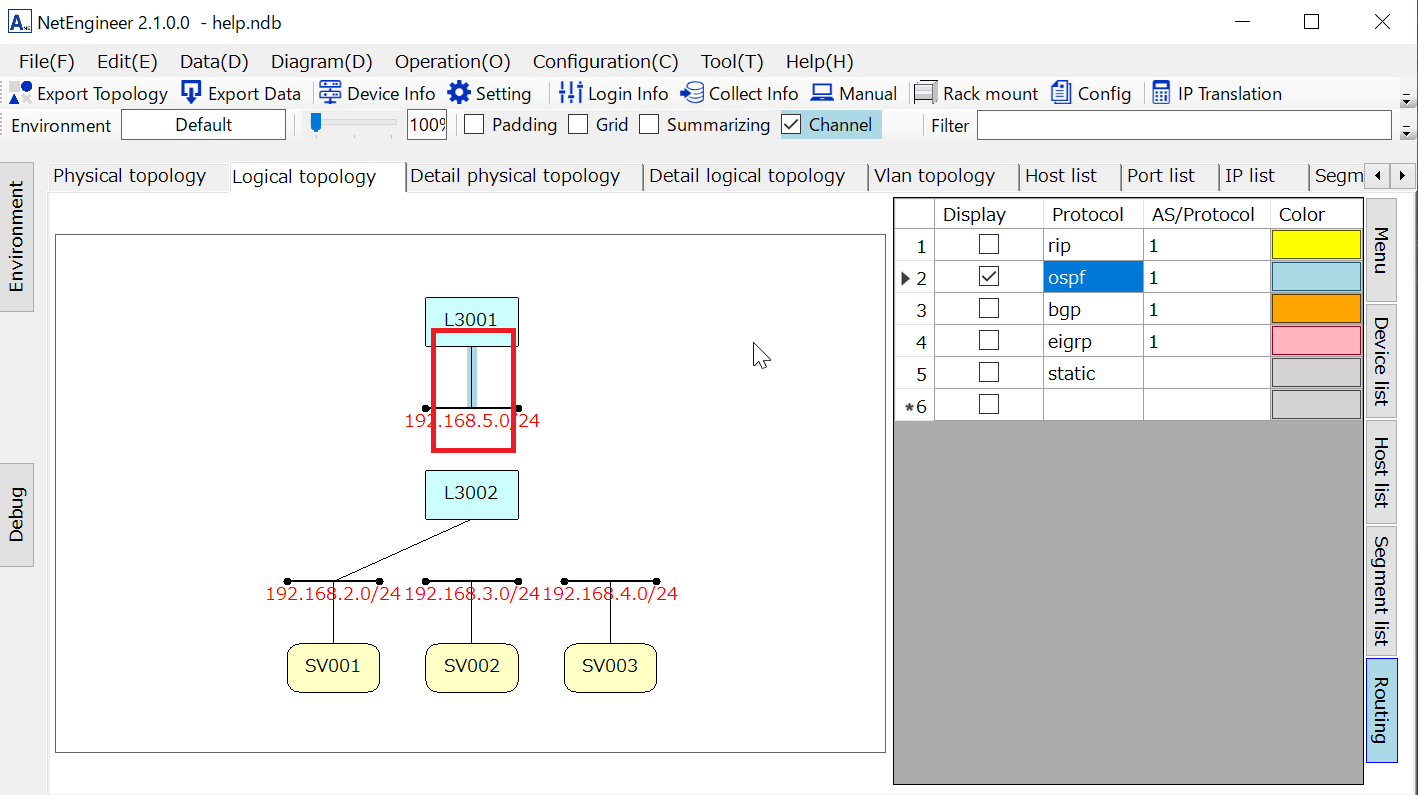

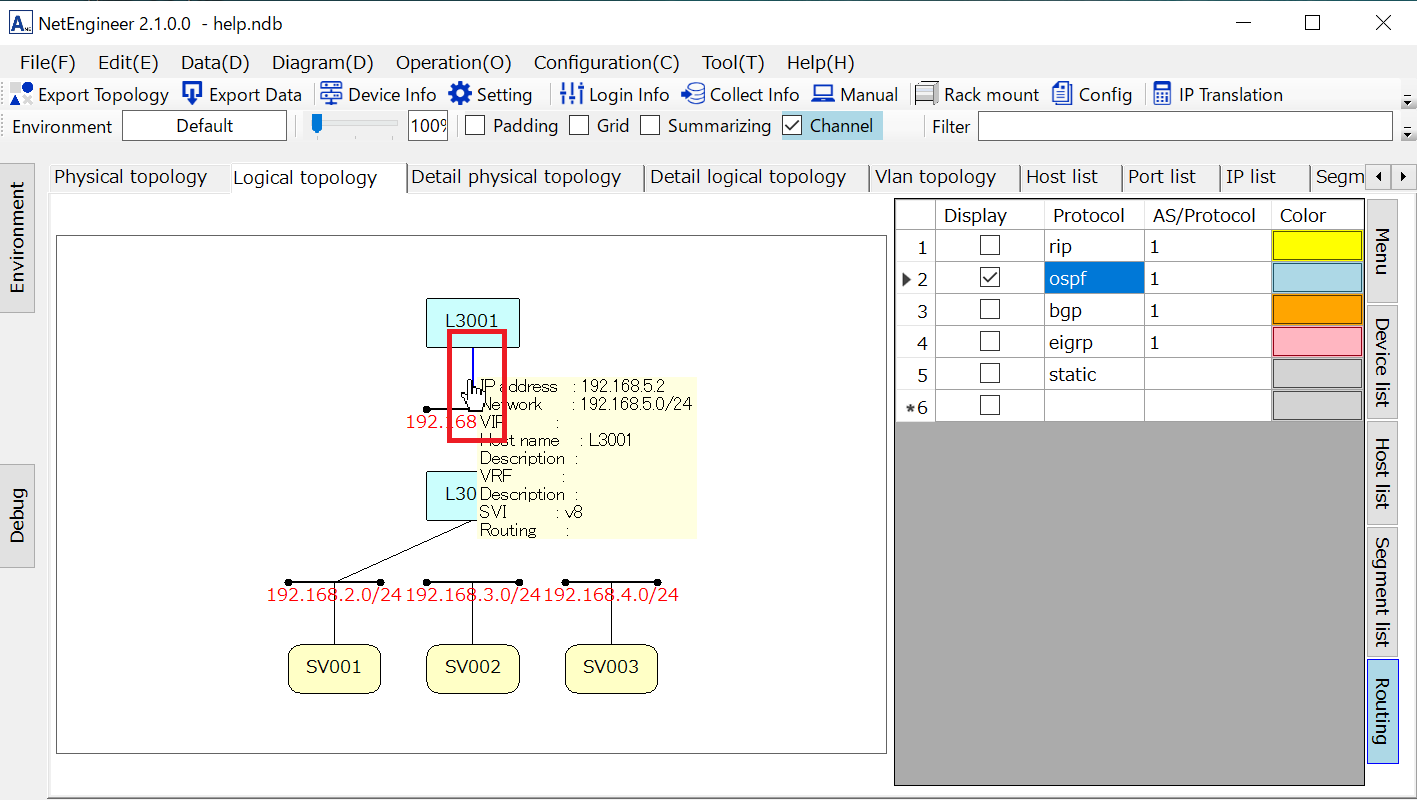

Click the line (IP address) you want to add.
Click Routing on the Logical topology diagram tab.
Select the routing protocol you want to add and check "Display".
Click the line (IP address) you want to add.
