You can add host objects and segment objects in the detailed logical topology diagram.

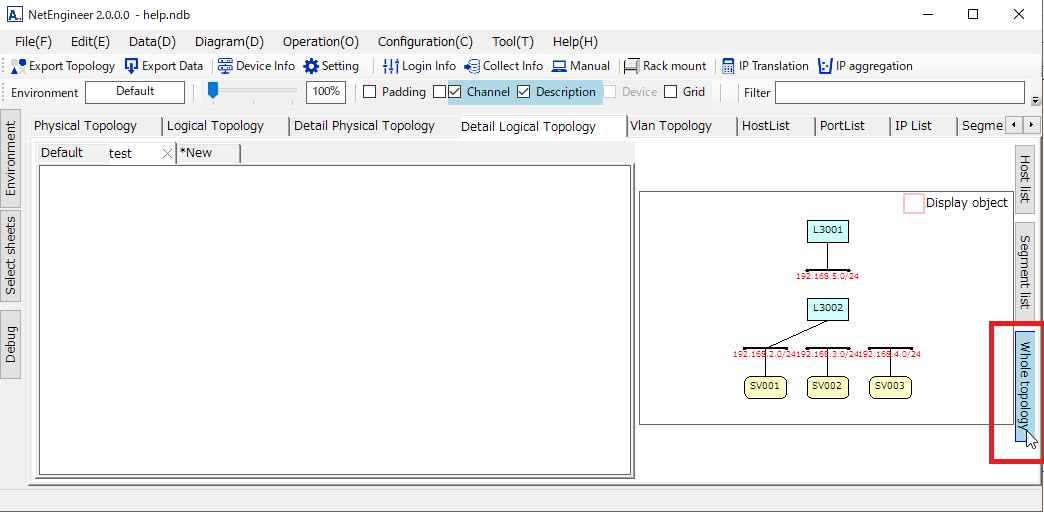

Please click "Whole topology" button on the right.

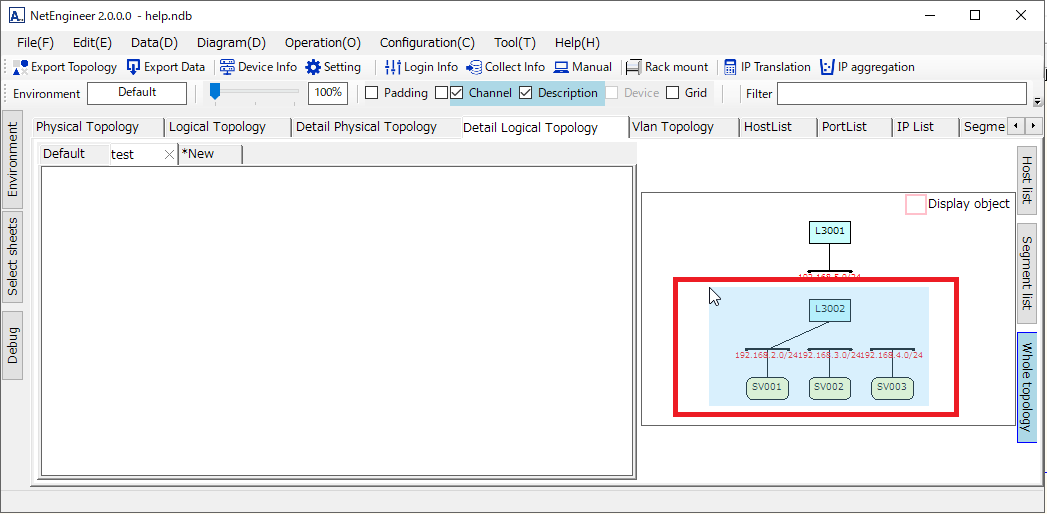

Please select the object you want to add by click or range.

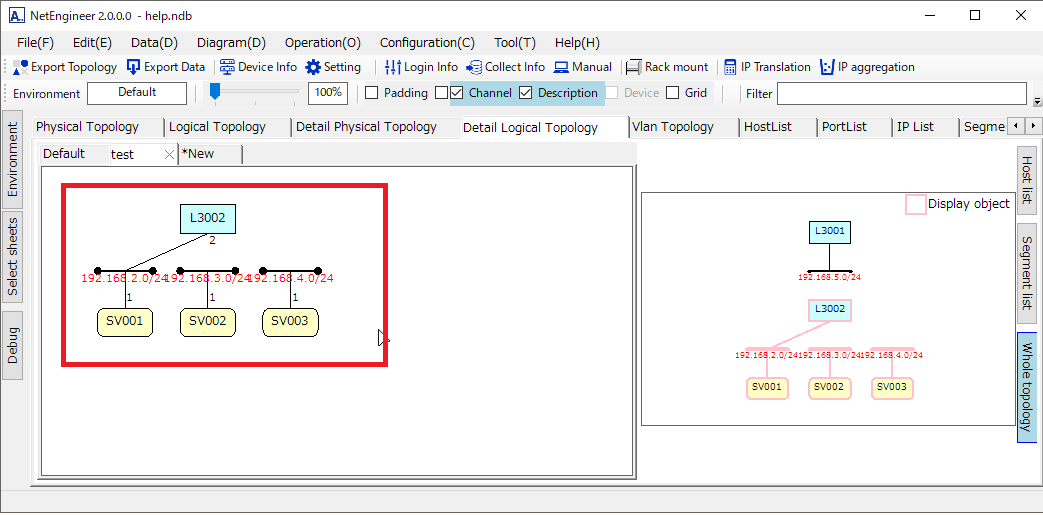

The selected objects is added to the detailed logical topology diagram.
