You can create a configuration template for each device.

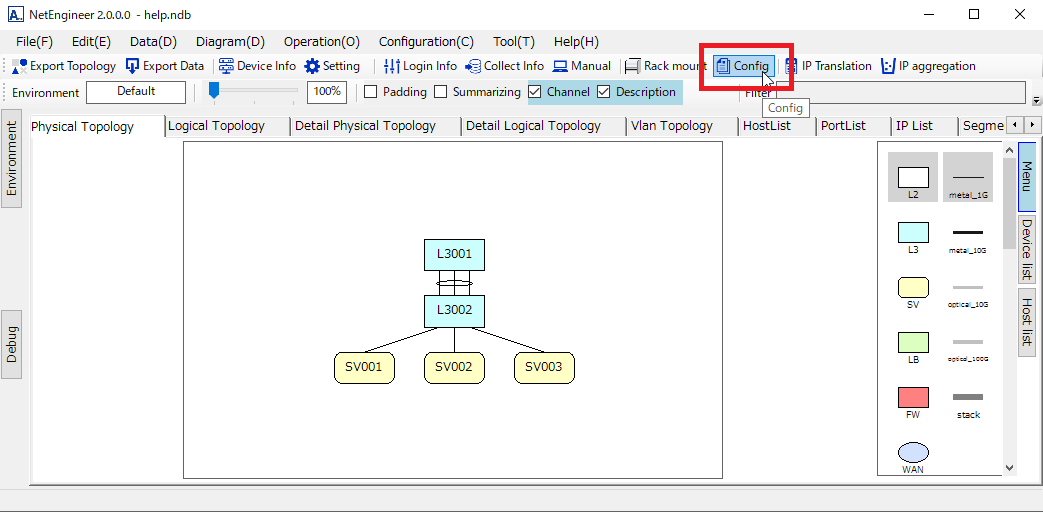

Please click "Config" button.

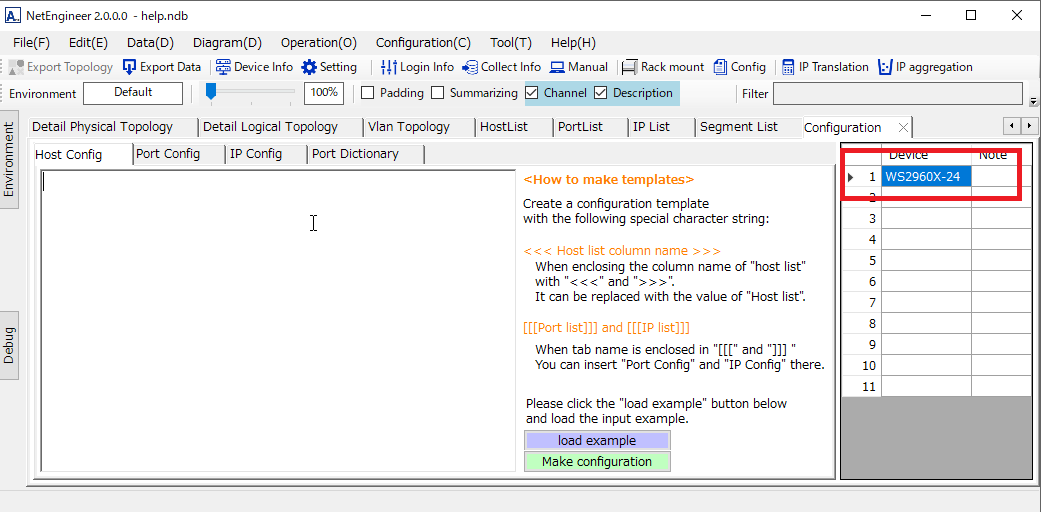

Please select device name. You can create template for each device.

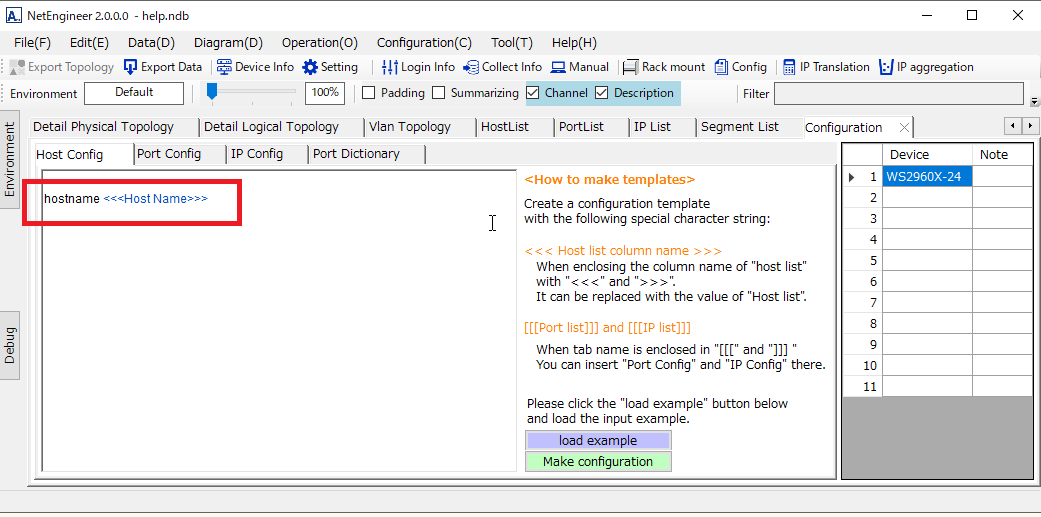

Create a template. The table column name surrounded by "<<<" and ">>>" can be converted to the value of that table.
Example: <<<Host name>>> → Output the host name.

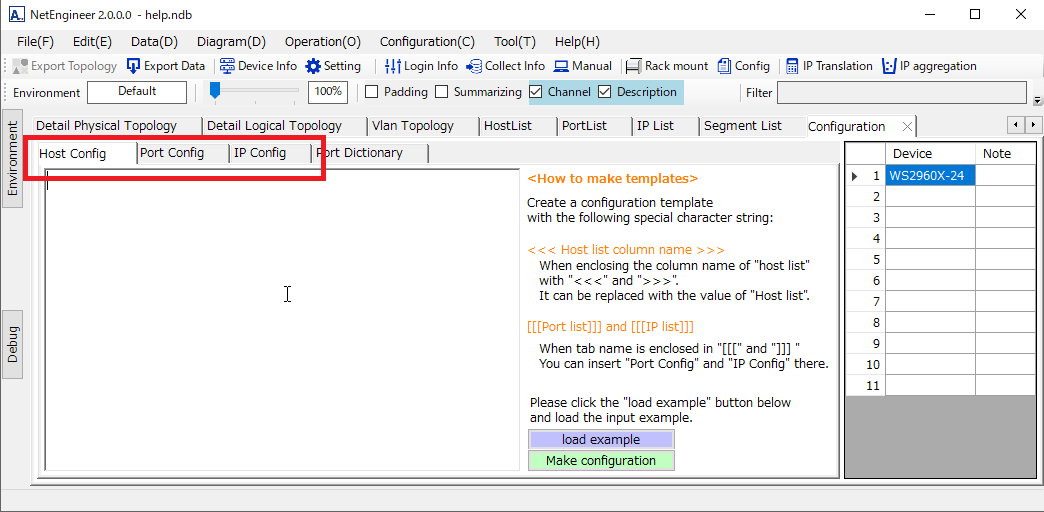

"Host Config", "Port Config", "IP Config" correspond to "Host List", "Port List", "IP List" respectively.

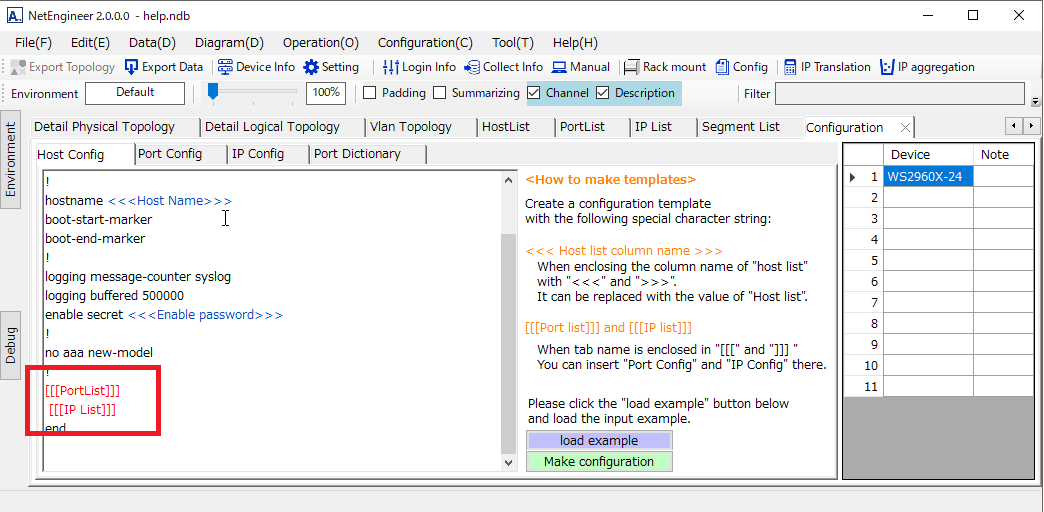

By entering "[[[port list]]" or "[[IP list]]" "in "Host config", you can insert "port config" and "IP config" in that place.

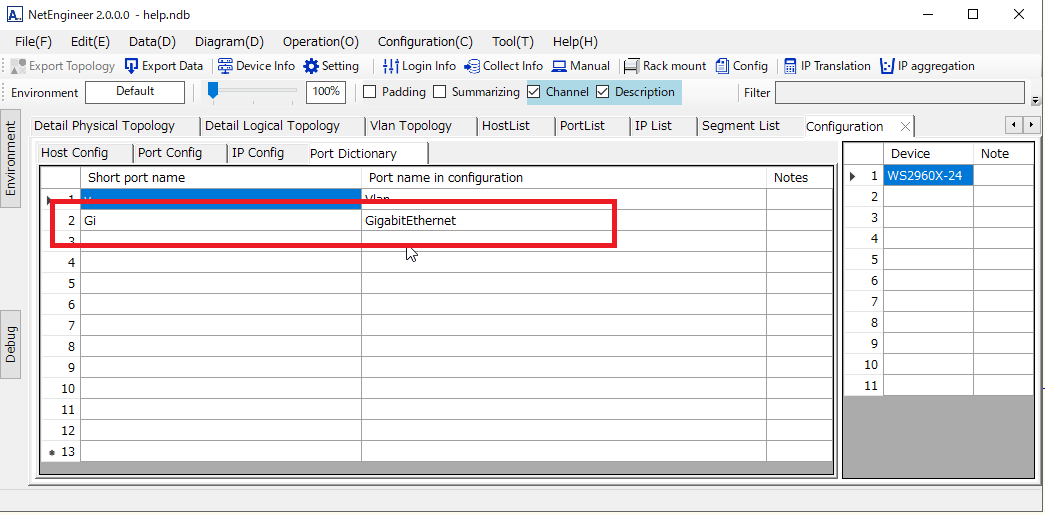

By specifying conversion on the "port dictionary" tab, you can convert the port (source port, destination port, SVI) by its value.
Example：Gi1/0/1 → GigabitEthernet1/0/1
Please click "Config" button.
Please select device name. You can create template for each device.
Create a template. The table column name surrounded by "<<<" and ">>>" can be converted to the value of that table.
Example: <<<Host name>>> → Output the host name.
"Host Config", "Port Config", "IP Config" correspond to "Host List", "Port List", "IP List" respectively.
By entering "[[[port list]]" or "[[IP list]]" "in "Host config", you can insert "port config" and "IP config" in that place.
By specifying conversion on the "port dictionary" tab, you can convert the port (source port, destination port, SVI) by its value.
Example：Gi1/0/1 → GigabitEthernet1/0/1
