You can add host on the detailed topology diagram from the whole topology diagram.

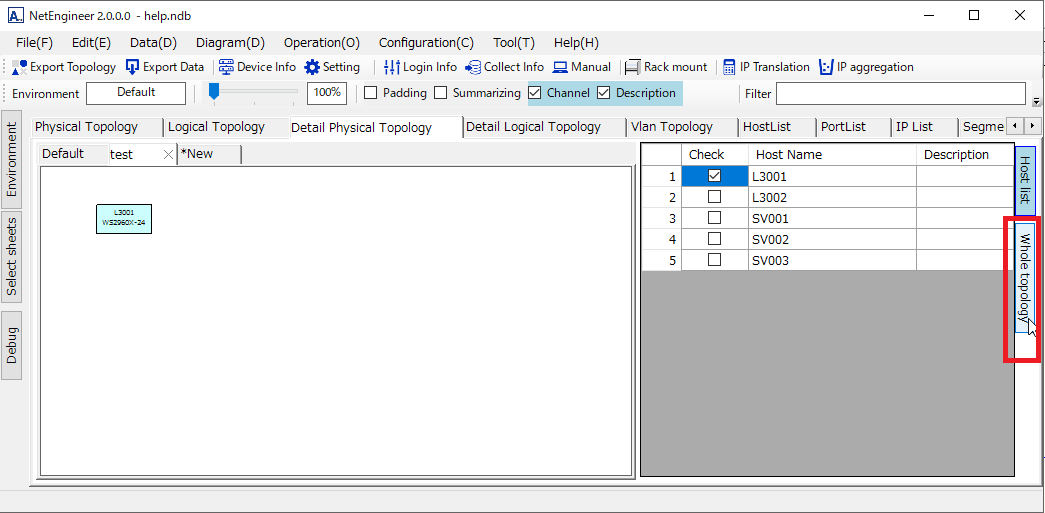

Please click "Whole topology" button from the right.

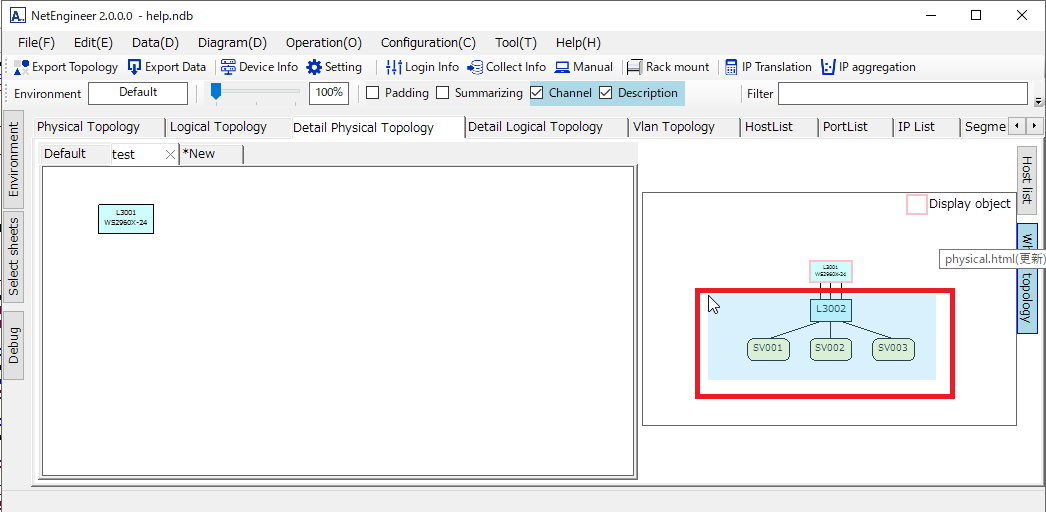

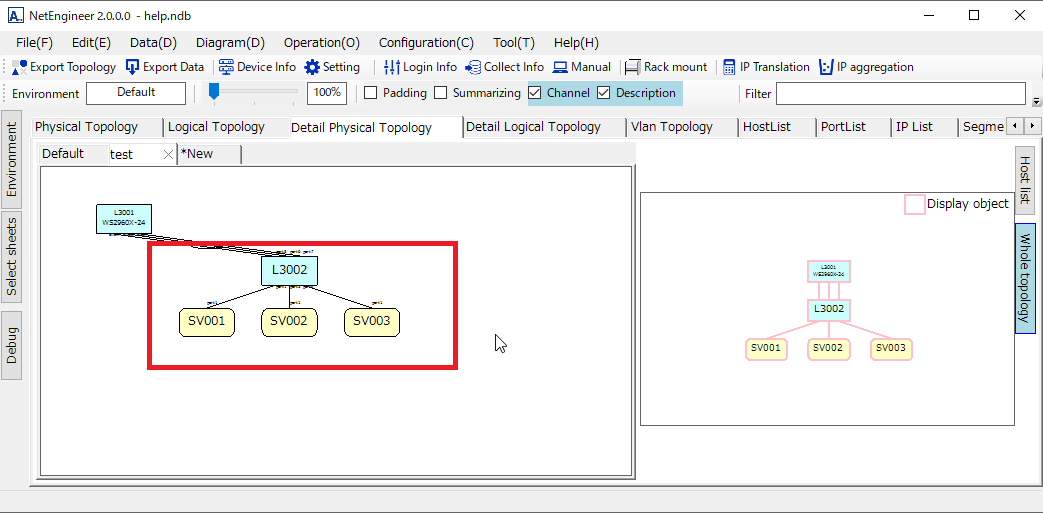

Please select the host object you want to add with the mouse. The selected host is added.
