Use a bastion server

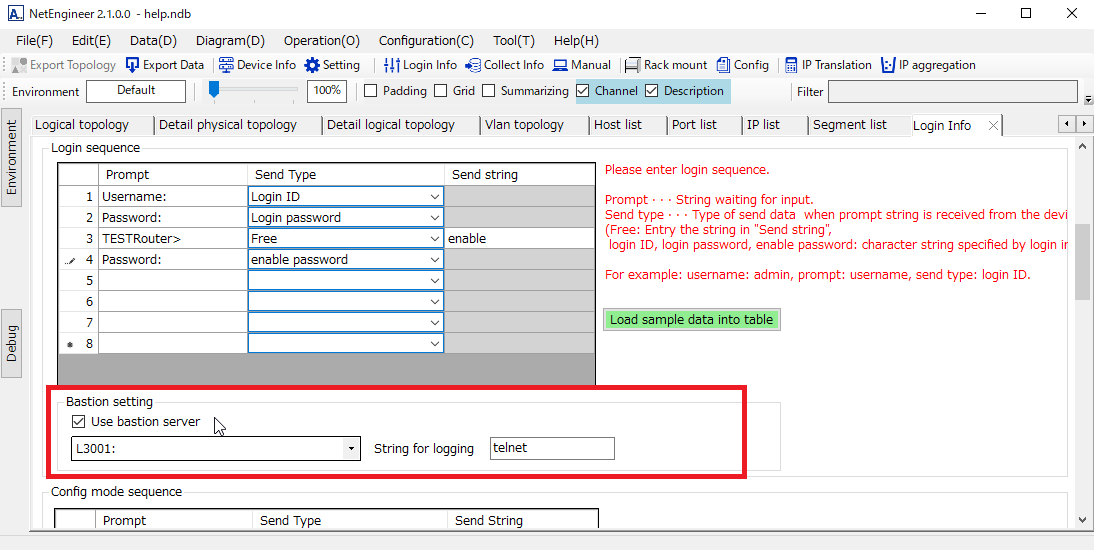

If you can not log in directly to the host and use a bastion server, please check "Use a bastion server".
Please select the bastion server from the drop box and enter "connection string".
If you enter "telnet" for "connection string", connect to the bastion server and connect with "telnet <IP address of target host>".
