Load sheets and objects layout linked with the detailed physical topology diagram.

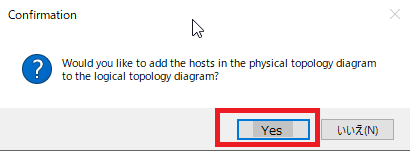

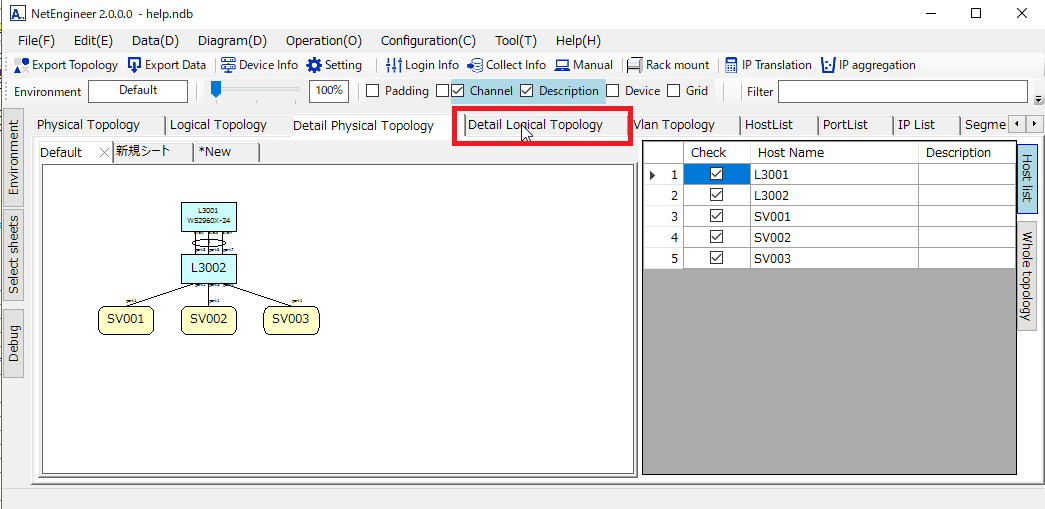

Click on the "detail logical topology" tab and click "Yes" at load confirmation.

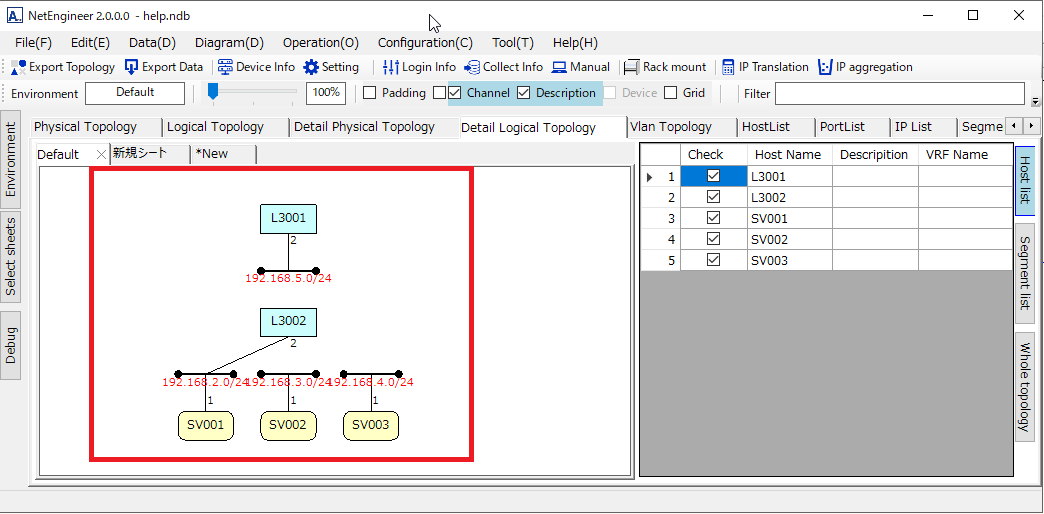

You can load the same object placement as the detailed physical topology diagram.
Click on the "detail logical topology" tab and click "Yes" at load confirmation.
You can load the same object placement as the detailed physical topology diagram.
