Serial connection

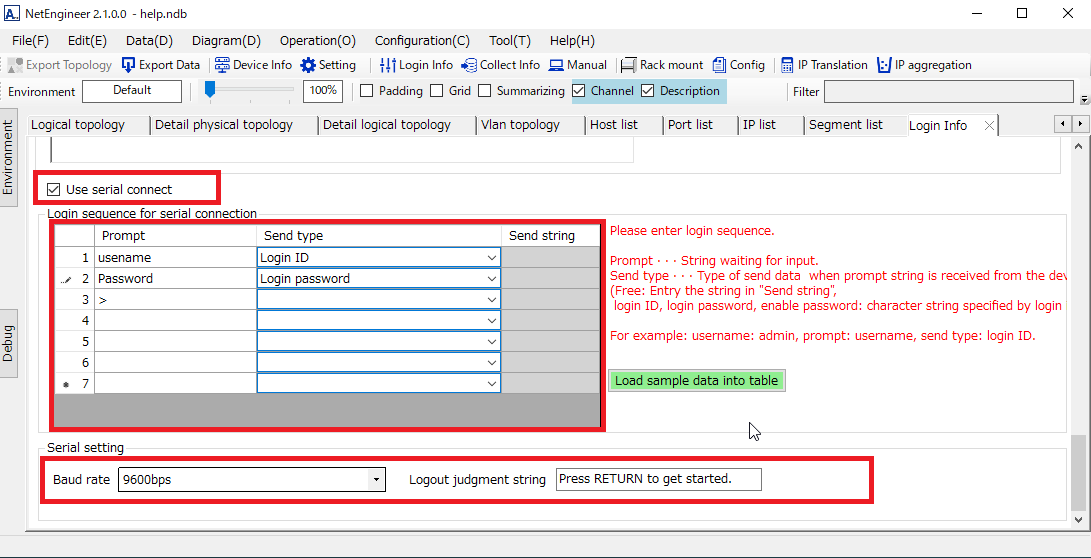

When using serial connection, please check "Use serial connect".
Please input "login sequence for serial connection", "baud rate", "logout judgment string".
"Logout judgment string" is a character string outputted when you log out because you do not know the logout on serial connection.
When it receives, it judges that it is logged out.
For Cisco,「press RETURN to get started.」.
